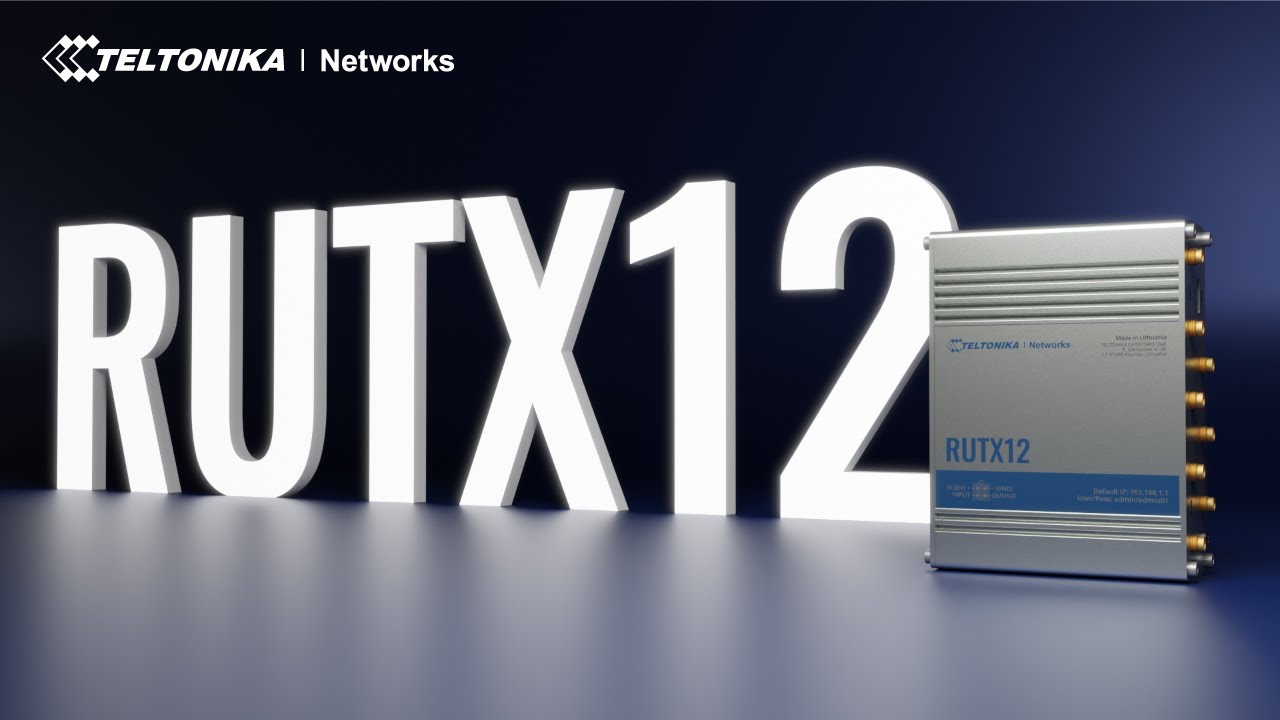

RUTX12

LTE CAT6 (dual modem) Gigabit industrial WiFi dual band 802.11ac router

The RUTX12 is an industrial CAT6 LTE router that incorporates two state-of-the-art LTE modems capable of reaching download speeds of up to 600Mbps (300×2) and equipped with 4 Gigabit Ethernet ports and a dual-band 2.4/5GHz WiFi interface according to the Wave-2 802.11ac standard capable of reaching speeds of over 800Mbps, a Quad-core CPU processor and 256 MB of RAM. This hardware together with the RutOS operating system provides advanced features such as multiple VPN sessions, X.509 certificates, advanced firewall and integration into the RMS centralized management system.

Its dual LTE modem allows it to double speed and offer redundancy in the event of a failure without the need for a new connection and registration on the mobile network.
The router has a GPS receiver capable of geolocating the equipment or providing a highly accurate time reference capable of synchronizing other equipment on the same network.

The RUTX family has a Bluetooth 4.0 interface allowing the connection of different Beacons and sensors which can then be monitored through the router itself or through MQTT and HTTPS protocol.
The RUTX12 is delivered with 4 LTE antennas, 2 WiFi antennas, a GNSS antenna, an Ethernet cable and an external power supply but can be continuously powered at voltages between 9Vdc and 50Vdc and can operate at temperatures between -40ºC and +75ºC.
