RUT956

The model RUT956 It is a router under 4G LTE technology capable of reaching download speeds of up to 100 Mbps It has 3 10/100BaseTX LAN ports with RJ45 connector and an 802.11b/g/n WiFi access point. It also incorporates a 10/100BaseTX WAN port with RJ45 connector, allowing the router to operate on this WAN interface with backup over the 3G network in case of its failure. It has dual SIM and can use the second operator as a backup of the first in case of reaching a certain volume of data, loss of signal or poor coverage.

The router has a VPN client (IPsec, GRE, OpenVPN, L2TP and PPTP) allows secure end-to-end connections, port forwarding, firewall and built-in dynDNS client. HotSpot with local and remote authentication, VRRP, OSPF, etc. Possibility of remote reset via SMS.

The router also has a port configurable as RS232 via DB9 connector or as RS485 2-wire or RS422 4-wire with adjustable termination impedance. This port can function as a console, as a TCP server or client, as a UDP transport, as a modem emulation, and even as a MODBUS TCP gateway.

Likewise, the router has an internal GPS capable of sending the coordinates of the equipment through the data connection to a central server (protocol compatible with the rest of Teltonika's locators). We can also see the exact position of the GPS through the router's own web server.
Finally, the router has 2 digital inputs (an isolated opto), a digital output and a relay through a terminal connector. The router allows you to create a series of rules to deal with these inputs and outputs, being able to carry out the following operations, among others:

send an SMS or email when a level change in a digital ticket
Actuate an output or relay upon a change of level on a digital input
Operate an output or relay manually or timed

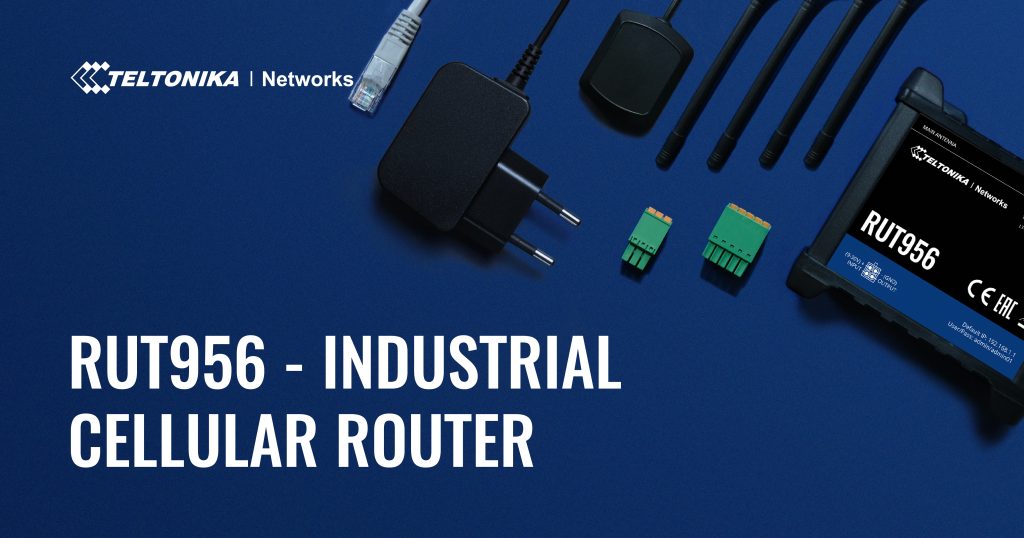

The router is delivered with two 5dBi WiFi antennas and two 3dBi GSM antennas, UTP Ethernet cable and 200Vac external power supply. The DIN rail mounting kit is also included.

The RUT956 router is equivalent to the RUT955 but with a MediaTek microprocessor and no support for an internal SD memory card. If you do not find this model available in our Online Store you can purchase the RUT955.
