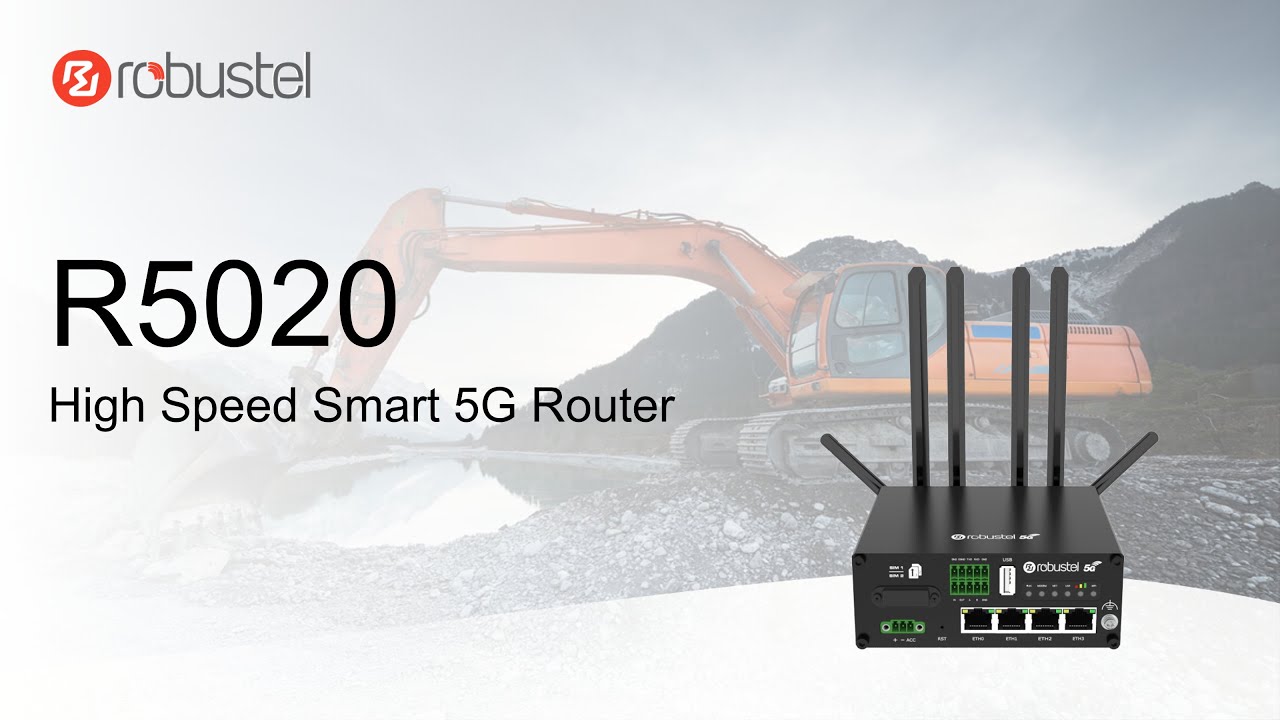

Robustel's R5020 offers next-generation cellular connectivity at a highly competitive price. Offering 3G, 4G/LTE, and 5G global band coverage in a small footprint, the R5020 enables the rapid deployment of high-speed IoT applications across verticals as diverse as transportation, business connectivity, and digital signage.
The R5020 is Robustel's first 5G-compatible router that supports global 5G, 4G, and 3G bands in a compact industrial form factor. It enables rapid deployment of high-speed IoT applications across verticals as diverse as transportation, business connectivity, and digital signage.
The R5020 leverages the tried and tested high-performance CPU platform and RobustOS, a mature and stable operating system developed in-house by Robustel. R5020 is compatible with 3GPP version 15 and is designed to be used by the following applications:
In-vehicle applications – Whether it's passenger WiFi, CCTV reporting, ticketing, or a similar "onboard" requirement, the R5020 offers a simple and effective solution for increasing today's future-proof internet speeds and facilities. The R5020 has obtained E-Mark certification for use in vehicles and supports GNSS positioning. A vehicle ignition sensing version is available to protect the vehicle's batteries when the engine is off.
Mobile backup of broadband connections - The R5020 can be configured to use Ethernet or Wi-Fi as the primary internet and failover to 4G/5G in the event of an outage. This can help provide resiliency to outlets such as stores and small offices at a reasonable cost and provide enough bandwidth for multiple users. IPsec, DMVPN, and Open VPN protocols can be used for connections to core networks.
Mobile broadband router : Cellular networks can now provide unlimited 5G rates at very reasonable prices, offering hundreds of Mbps of over-the-air internet. For many, the opportunity to cut cords and use a wireless internet connection can be technically or commercially advantageous.
Key features
- 5G/4G/3G Global Cellular Connections
- Supports Ethernet, Wifi, and 4G/5G Internet with automatic failover
- Highly cost-effective industrial 5G router solution
- Fully programmable operating system with well-documented SDK
- Various VPN options available, including DMVPN and IPSEC
- GNSS, ignition sensor for vehicles and E-mark certification
- Free Cloud Management Platform – RCMS
- Rugged, space-saving metal enclosure with options for wall or DIN rail mounting
| Cellular Interface | |
| Number of antennas | 4 (ANT0 + ANT1 + ANT2 + ANT3) |
| Connector | SMA-K |
| SIM | 2 Mini SIM (2FF) |
| GNSS (Optional, required 4-in-1 Combo Antenna) | |
| Number of antennas | 1 (ANT3, Multiplexing cellular antenna interface) |
| Connector | SMA-K |
| GNSS technology | GPS/GLONASS/BeiDou (Compass)/Galileo |
| Horizontal position accuracy | < 2m |
| Ethernet Interface | |
| Number of ports | 4 x 10/100/1000 Mbps, |
| 4 LAN by default, can be configured as 1 WAN + 3 LAN | |
| Support 802.3at PD feature on ETH0 (optional) | |
| Magnet isolation protection | 1 KV |
| Wi-Fi Interface | |
| Number of antennas | 2 (Wi-Fi1 + Wi-Fi2) |
| Connector | RP-SMA-K |
| Standards | 802.11b/g/n/ac, 2 x 2 MIMO, supports AP and Client modes |
| Frequency bands | 2.412 – 2.472 GHz (2.4 GHz ISM band) |
| 5.15 – 5.825 GHz (5 GHz ISM band) | |
| Security | WPA, WPA2, WEP |
| Encryption | AES, TKIP, WEP64 |
| Data speed | 5G: Up to 867 Mbps2.4G: Up to 300 Mbps |
| Serial Interface | |
| Number of ports | 1 x RS232 + 1 x RS485 |
| Connector | 2 x 5-pin 3.5 mm female socket |
| Baud rate | 300 bps ~ 115200 bps |
| Signal definition | RS232: TXD, RXD, GNDRS485: Data+ (A), Data- (B), Ground (GND) |
| DI/DO | |
| Type | 1x DI + 1 x DO, wet contact |
| Connector | 2 x 5-pin 3.5 mm female socket |
| Isolation | 3.75 KVDC (opto-isolator) |
| Absolute maximum VDC | "V+" +30 VDC (ID), +30 VDC (OD) |
| Absolute maximum ADCSignal definition | 100 mA (DO)IN, OUT, IGNDM OGND |
| Others | |
| Reset button | 1 x RST |
| Expansion | 1 x USB 2.0 Host; 5V/500mA |
| LED indicators | 1 x RUN, 1 x Modem, 1 x USR, 1 x RSSI, 1 x NET, 1 x WiFi |
| Built-in | Watchdog |
| Software (Basic features of RobustOS) | |
| Network protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, SSH2, DDNS, etc. |
| VPN tunnel | IPsec, OpenVPN, GRE |
| Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote management | Web, CLI, SMS |
| Serial port | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| Others | Smart Reboot, Data Guard, Smart Roaming, etc. |
| SDK | |
| Supported programming languages | C, C++ |
| Flash available for SDK | 5 MB |
| RAM available for SDK | 256 MB |
| App Center (Available Apps for RobustOS) | |
| Apps* | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069 |
| *Request on demand . F or more A pp Yes, please visit www.robustel.com. | |
| Power Supply and Consumption | |
| Connector | 3-pin 3.5 mm female socket with lock |
| Input voltage | 9~36 VDC (POE-PD)10 ~ 30 VDC (ACC) |
| Power consumption | Idle: 520 mA@12 VData link: 1.8 A (peak) @12 V |
| Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Aluminum, 500 g |
| Dimension | 125 x 100 x 48 mm |
| Installations | Desktop, wall mounting and DIN rail mounting |
| Operating temperature | -25 ~ +55°C (Normal operation)-25 ~ +70°C (Extended operation) |
| Storage temperature | -40 ~ +85°C |
| Relative humidity | 5~95%RH |
| Regulatory and Type Approvals | |
| Environmental | RoHS2.0, WEEE |
| EMI | EN 55032 Conducted Emission Class AEN 55032 Radiated Emission Class A |
| EMS | EN 61000-3-2 (Harmonic Current) EN 61000-3-3 (Voltage Flicker)EN 61000-4-2 (ESD) Contact Level 2, Air Level 3EN 61000-4-3 (RS) Level 2EN 61000-4-4 (EFT) Level 2EN 61000-4-5 (Surge)Line to line Level 3, Line to ground Level 1EN 61000-4-6 (CS) Level 2EN 61000-4-11 (Dips) Class 2 |
| Model | PN | GNSS | ACC | POE-PD | Frequency Bands* | Country/ Region | Certificatio n (*In progress ) |
| R5020-5G-A09GL-A | B064803 | * | ✓ | – | 5G : NR NSA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79NR SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79 4G : LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71LTE TDD: B34/B38/B39/B40/B41/B42/B43/B48 3G : WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 | Global | E-Mark, FCC, CE, IC, RCM, UKCA |
| R5020-5G-A09GL-B | B064802 | * | – | ✓ | E-Mark, FCC, CE, IC, RCM, UKCA, PTCRB, AT&T |
* GNSS: R equired 4-in-1 Combo Antenna .
*For more information about frequency bands in different countries, please contact your Robustel sales representative.
